Mounting kit for mounting rims on ABS model for Vespa, rear
Description
Product information
for Vespa for Vespa GTS/GTS Super/GTV 125-300cc ('14-)
For models that are equipped with ABS on the rear wheel as standard, the change to rims from the accessories has always been difficult, often there were problems with the installation of the rear tone wheel. With the SIP bolt kit, these problems are a thing of the past. In the twinkling of an eye, the rims of the "non-ABS" models such as SIP, ZELIONI or even PIAGGIO rims can be mounted, the ABS tone wheel can be screwed to the special wheel nuts with internal thread. Possibly the ABS sensor can drag on the tone wheel, for this we supply two small M5 washers, these simply come to the screw between ABS sensor and swing arm.
- Consisting of PIAGGIO screws
Mounting instructions:

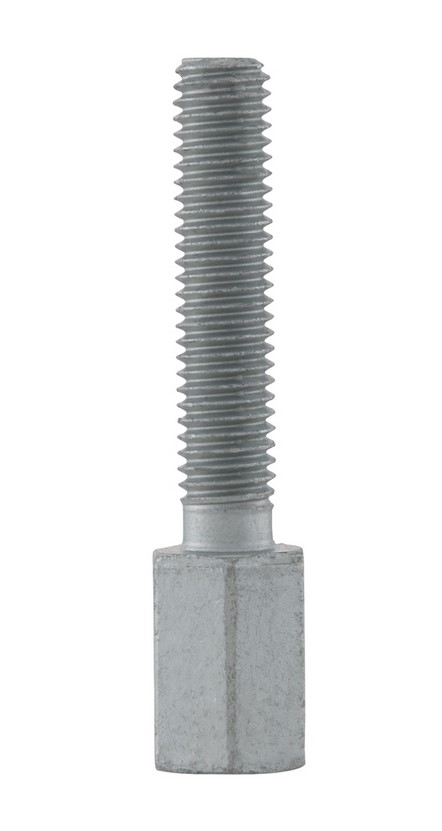

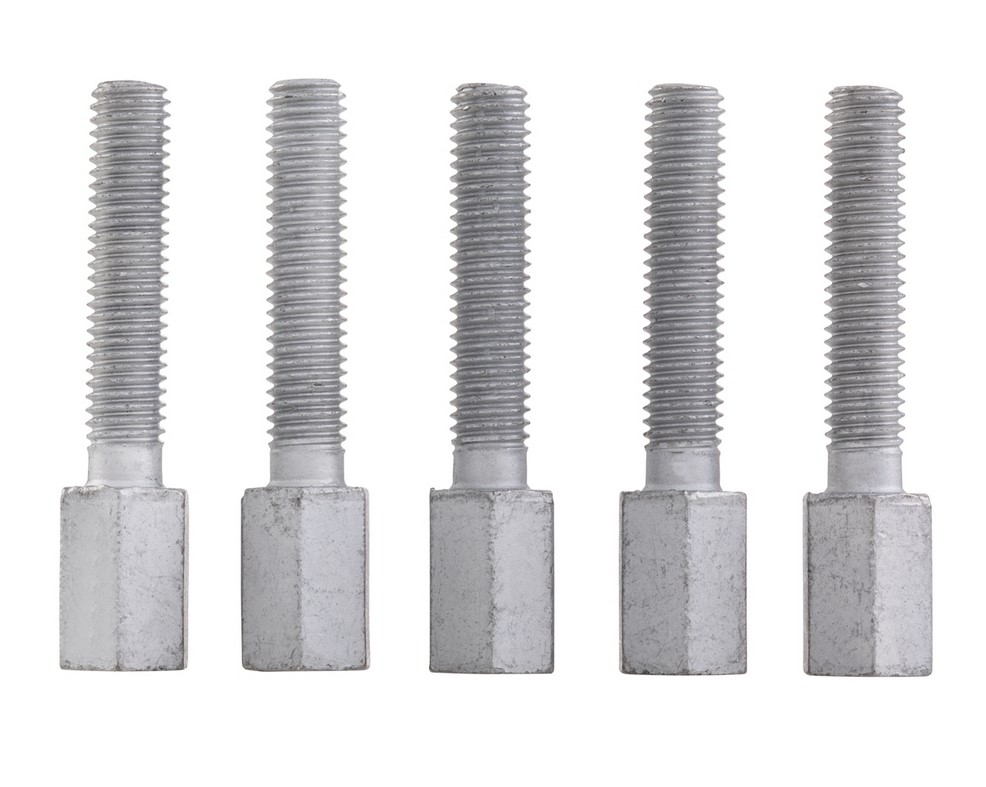

- Fix the rim with the five new wheel nuts (bolts with hexagon head, internal thread) and the five M8 washers
- Screw the ABS tone wheel to the internal threads of the wheel nuts using the five M5 Torx screws and the five M5 corrugated washers
- Now mount the swing arm again
- The distance of the ABS sensor to the tone wheel should be at least 0,4mm according to PIAGGIO. If the distance is smaller or if the tone wheel rubs against the sensor, one or two of the supplied M5 washers must be placed on the sensor mounting screw between the ABS sensor and the swing arm to create sufficient distance to the tone wheel. CAUTION: The distance should not be too large, otherwise no signal can be picked up.
Manufacturer
SIP Style
|
SIP Scootershop GmbH |
Reviews 0
Login
Zubehör Artikel
The SIP Performance rim for Modern Vespa models come in the usual high quality, where both workmanship and fit are right. Product with perfect surface finish, 20 spokes, surface CNC machined and cast SIP logo. They are manufactured in compliance with the ETRTO (European Tyre and Rim Technical Organization) guidelines, the industry standard for rim and tire production, and have the KBA type mark. Thus legally usable in the German road traffic. 3.00 -12" Aluminum chrome 20 spokes with ABE KBA 50336 The latest version of the ABE can be found in the downloads. Please check before buying whether the ABE is valid for the desired vehicle. Assembly note Vespa GTS models with ABS: For models that are equipped with ABS as standard on the rear wheel, a mounting kit (Part No. MV000617) including new wheel bolts and screws for the tone wheel is required. Order this at the same time.
With the help of the conversion kit 13" MP3 rims can be installed on a GTS/GTS Super/GTV/GT 60/GT/GT L . Mounting instructions Vespa GTS models with ABS: For models that are equipped with ABS as standard on the rear wheel, a mounting kit (Part No. MV000617) including new wheel bolts and screws for the tone wheel is required. This must be ordered at the same time.
The SIP Performance rim for Modern Vespa models come in the usual high quality, where both workmanship and fit are right. Product with perfect surface finish, 20 spokes, surface CNC machined and cast SIP logo. They are manufactured in compliance with the ETRTO (European Tyre and Rim Technical Organization) guidelines, the industry standard for rim and tire production, and have the KBA type mark. Thus legally usable in the German road traffic. 3.00 -12" Aluminum silver 20 spokes with ABE KBA 50336 The latest version of the ABE can be found in the downloads. Please check before buying whether the ABE is valid for the desired vehicle. Assembly note Vespa GTS models with ABS: For models that are equipped with ABS as standard on the rear wheel, a mounting kit (Part No. MV000617) including new wheel bolts and screws for the tone wheel is required. Order this at the same time.
The SIP Performance rim for Modern Vespa models come in the usual high quality, where both workmanship and fit are right. Product with perfect surface finish, 20 spokes, surface CNC machined and cast SIP logo. They are manufactured in compliance with the ETRTO (European Tyre and Rim Technical Organization) guidelines, the industry standard for rim and tire production, and have the KBA type mark. Thus legally usable in the German road traffic. 3.00 -12" Aluminum black glossy 20 spokes with ABE KBA 50336 The latest version of the ABE can be found in the downloads. Please check before purchase whether the ABE is valid for the desired vehicle.\ Assembly note Vespa GTS models with ABS: For models that are equipped with ABS on the rear wheel as standard, a mounting kit (Part No. MV000617) including new wheel bolts and screws for the tone wheel is required. Order this at the same time.
High quality forged aluminum rim from ZELIONI. Absolute high-end product with perfect surface finish, 10 spokes, forged rim, surface CNC machined and laser engraved ZELIONI logo. Additionally reduced weight. The original valve can not be reused. We recommend the screwable valves from ZELIONI (part no. ZELV01MB) or G-Pro. (part no. MV597680). front or rear Ø 12" Aluminum black matt 10 spokes Mounting instructions Vespa GTS models with ABS: For models that are equipped with ABS on the rear wheel as standard, a mounting kit (Part No. MV000617) including new wheel bolts and screws for the tone wheel is required. This must be ordered at the same time.
The SIP Performance rim for Modern Vespa models come in the usual high quality, where both workmanship and fit are right. Product with perfect surface finish, 20 spokes, surface CNC machined and cast SIP logo. They are manufactured in compliance with the ETRTO (European Tyre and Rim Technical Organization) guidelines, the industry standard for rim and tire production, and have the KBA type mark. Thus legally usable in the German road traffic. 3.00 -12" Aluminum gold 20 spokes with ABE KBA 50336 The latest version of the ABE can be found in the downloads. Please check before buying whether the ABE is valid for the desired vehicle. Assembly note Vespa GTS models with ABS: For models that are equipped with ABS as standard on the rear wheel, a mounting kit (Part No. MV000617) including new wheel bolts and screws for the tone wheel is required. Order this at the same time.
High quality forged aluminum rim from ZELIONI. Absolute high-end product with perfect surface finish, forged rim, surface CNC machined and laser engraved ZELIONI logo. Additionally reduced weight. The original valve can not be reused. We recommend the screwable valves from ZELIONI (part no. ZELV01MB) or G-Pro. (part no. MV597680) front or rear 3.00 Ø 12" Aluminum black Mounting instructions Vespa GTS models with ABS: For models that are equipped with ABS on the rear wheel as standard, a mounting kit (part no. MV000617) including new wheel bolts and screws for the tone wheel is required. This must be ordered at the same time.
The SIP Performance rim for Modern Vespa models come in the usual high quality, where both workmanship and fit are right. Product with perfect surface finish, 20 spokes, surface CNC machined and cast SIP logo. They are manufactured in compliance with the ETRTO (European Tyre and Rim Technical Organization) guidelines, the industry standard for rim and tire production, and have the KBA type mark. Thus legally usable in the German road traffic. 3.00 -12" Aluminum black matt 20 spokes with ABE KBA 50336 The latest version of the ABE can be found in the downloads. Please check before buying whether the ABE is valid for the desired vehicle. Assembly note Vespa GTS models with ABS: For models that are equipped with ABS as standard on the rear wheel, a mounting kit (Part No. MV000617) including new wheel bolts and screws for the tone wheel is required. Order this at the same time.

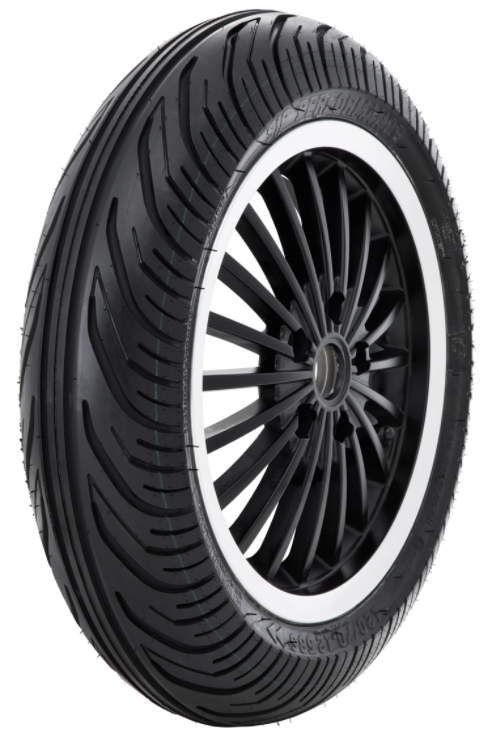

Ready to drive, pre-mounted tires that just need to be installed and driven - no more scratched rims when trying to mount the tires yourself, no running to the tire dealer of confidence. Mounted, balanced, ready to drive, up to 180km/h. The tire With a speed index and the admission up to 180 km/h the SIP PERFORMANCE tire permits clearly more than a Vespa GTS can drive. Still, it feels good to know that at least with the tire, you don't have to worry anymore. The sporty profile in combination with the rubber compound make this tire the ideal companion, not only on dry roads, but also on wet roads the tire makes a good figure. Except for trips in mud and snow nothing brings this tire out of balance. Perfectly suited for all drivers who are mainly in the spring, summer and autumn on the road and are looking for a reliable tire for little money. Speed index "S", up to 180 km/h Tread: sporty good performance on dry and wet roads B 120 mm Ø 12" with ECE standard The rim The SIP Performance rim for Modern Vespa models come in the usual high quality, where both workmanship and fit are right. Product with perfect surface finish, 20 spokes, surface CNC machined and cast SIP logo. They are manufactured in compliance with the ETRTO (European Tyre and Rim Technical Organization) guidelines, the industry standard for rim and tire production, and have the KBA type mark. Thus legally usable in the German road traffic. 3.00 -12" Aluminum black matt with polished rim 20 spokes with ABE KBA 50336 The latest version of the ABE can be found in the downloads. Please check before buying whether the ABE is valid for the desired vehicle.
